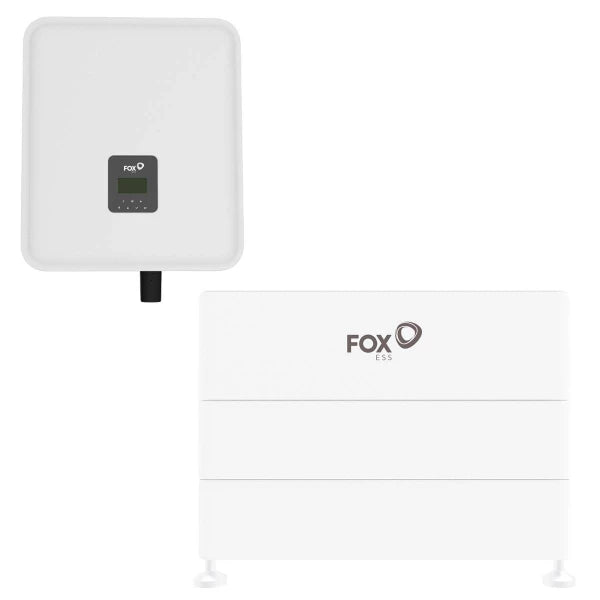

FOX ESS H3 10kW Hybrid Wechselrichter mit 12,09kWh Solarspeicher

FOX ESS H3 10kW hybrid inverter with 12.09kWh solar storage

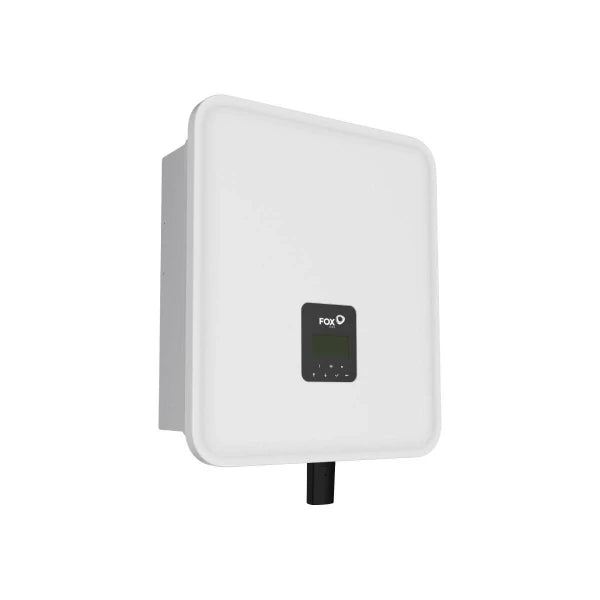

The H3-10.0-E is a hybrid inverter from FOX ESS. Hybrid inverters supply the connected consumers with energy from the solar battery as needed. This increases your own consumption of solar power.

Does the H3-10.0-E meet your needs?

The maximum output power of the hybrid inverter is 10000W. The product is compatible with a system of up to 13kWp. The maximum efficiency of the inverter is described as the maximum efficiency. The value is 98%. Under typical weather conditions in Europe, the hybrid inverter achieves a European efficiency of 97.3%.

An overview of the functions of your new device

In the event of a power failure, this hybrid inverter with built-in emergency power capability will continue to supply your home with a switchover time of 20ms. The hybrid inverter contains 2 MPP trackers. The smart meter is already included and does not need to be purchased separately.

The hybrid inverter has these interfaces

Your new hybrid inverter communicates with other devices in the network. The model has these interfaces:

• USB
• CAN
• RS485

The inverter comes with WiFi functionality and energy meter.

FOX ESS ECS4100 4,030Wh high-voltage battery

The FOX ESS ECS2900 high-voltage battery 57.6V 50Ah impresses with an output of 4.03kWh. It must be connected to an ECM4100 high-voltage battery with BMS.

Performance

A maximum of one ECM4100 and up to six ECS4100 can be combined. This enables storage sizes from 8.06 kWh to 28.21 kWh.

installation

Installation is simple via plug & play: the modules are stacked on top of each other, allowing for quick assembly.

Note: The FOX ESS ECS4100 has a black start function. To use this, three ECS4100 modules are required. This set contains two ECS4100 modules. The modules can be purchased separately from us. Alternatively, we also offer sets with larger memory sizes with which the black start function could be used.

Scope of delivery:

• 1 FOX ESS H3 10kW hybrid inverter 3-phase
• 1 FOX ESS ECM4100 4,030Wh high-voltage solar storage with BMS V2.0
• 2 FOX ESS ECS4100 4,030Wh high-voltage solar storage V2.0
